1. SCOPE.
a. This technical manual is published for the information and guidance of the using arm personnel charged with the operation and maintenance of this materiel.
b. In addition to a description of the 14-ton 4 x 4 Truck (Willys-Overland model MB and Ford GPW), this manual contains technical information required for the identification, use, and care of the mate- riel. The manual is divided into two parts. Part One, sections I through VII, contains vehicle operating instructions. Part Two, sec- tions VIII through XXXII, contains vehicle maintenance instructions to using arm personnel charged with the responsibility of doing maintenance work within their jurisdiction, including radio suppres- sion and shipment and temporary storage information.
c.In all cases where the nature of the repair, modification, or adjustment is beyond the scope of facilities of the unit, the respon- sible ordnance service should be informed so that trained personnel with suitable tools and equipment may be provided, or proper instructions issued.
d. This manual includes operating and organizational mainte- nance instructions from the following Quartermaster Corps 10-series technical manuals. Together with TM 9-1803A and TM 9-1803B,
this manual supersedes them:
(1) TM 10-1103, 20 August 1941.
(2) TM 10-1207, 20 August 1941.
(3) TM 10-1349, 3 January 1942.
(4) TM 10-1513, Change 1, 15 January 1943.

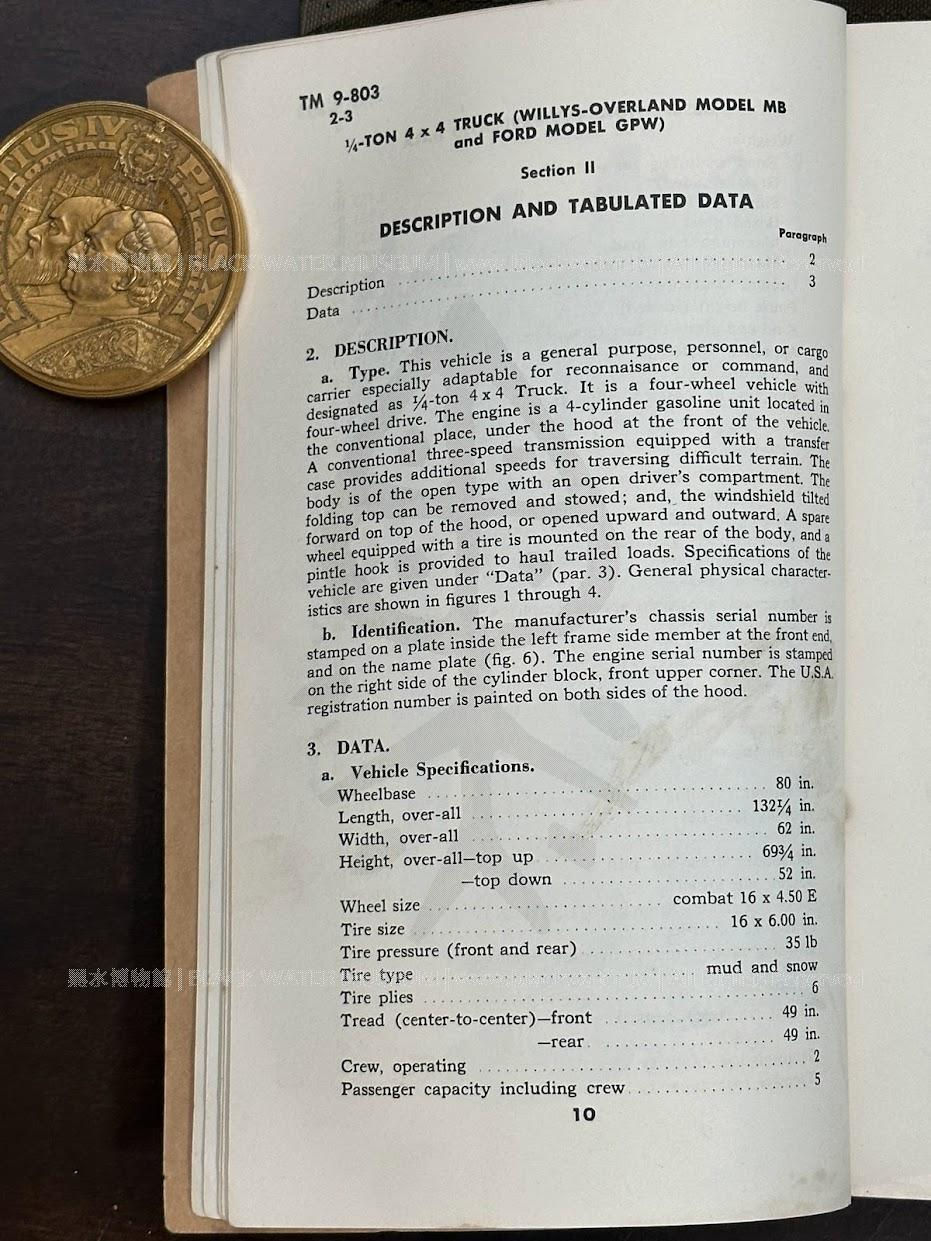

2. DESCRIPTION.
a. Type. This vehicle is a general purpose, personnel, or cargo carrier especially adaptable for reconnaisance or command, and designated as 4-ton 4x4 Truck. It is a four-wheel vehicle with four-wheel drive. The engine is a 4-cylinder gasoline unit located in the conventional place, under the hood at the front of the vehicle. A conventional three-speed transmission equipped with a transfer case provides additional speeds for traversing difficult terrain. The body is of the open type with an open driver's compartment. The folding top can be removed and stowed; and, the windshield tilted forward on top of the hood, or opened upward and outward. A spare wheel equipped with a tire is mounted on the rear of the body, and a pintle hook is provided to haul trailed loads. Specifications of the vehicle are given under "Data" (par. 3). General physical character- istics are shown in figures 1 through 4.
b. Identification. The manufacturer's chassis serial number is stamped on a plate inside the left frame side member at the front end. and on the name plate (fig. 6). The engine serial number is stamped on the right side of the cylinder block, front upper corner. The U.S.A registration number is painted on both sides of the hood.
3. DATA.
a. Vehicle Specifications.
Wheelbase 80 in.
Length, over-all 1324 in.
Width, over-all 62 in.
Height, over-all-top up 693/4 in.
-top down 52 in.
Wheel size combat 16 x 4.50 E
Tire size 16 x 6.00 in.
Tire pressure (front and rear) 35 lb
Tire type mud and snow
Tire plies 6
Tread (center-to-center)-front 49 in.
-rear. 49 in.
Crew, operating 2
Passenger capacity including crew 5 (載客量，包含正副駕駛共5員)
